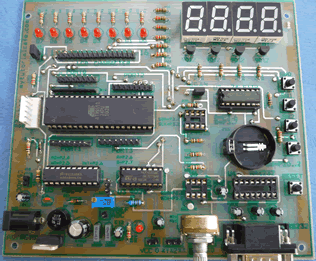

Simple Microcontroller Trainer
Learn 8051 Programming and Code Development the quick and easy
way, with this easy to use Educational/Training Board. The 8051
Educational board incorporates an AT89S51 Atmel Microcontroller
with 4k of In-System Flash Memory, which can be programmed and
re-programmed easily with simple to use standard download ATMEL
ISP software. Eight test LED's, 8 pushbuttons, 4 Seven Segmen,
ADC and Serial Communiation RS232 are provided, allowing code
to be developed and tested immediately.
All port I/O's are available at easy to connect male headers,
standard plugs can be used. Program Run switch is also included
together. A reset pushbutton is pre-wired to the IC.
Please note: Power supply is not included, a
regulated 5 volt dc supply is required.
Features
• Includes AT89S51 with 4kb internal Flash Program Memory
• Programming ISP via USB Port
• crystal(12.MHz) pre-wired
• All I/O pins connected to headers for easy external connections.
• AT89S51 can be programmed on-board, Programming Cable
Provided
• 4 Test Pushbuttons
• 8 LED
• RS232 Connection
• ADC0804 for single chanel with 0 - 5 volt range input.
• 4 x 7 segmen display common anoda
• Download Software and Sample Code Included
• Circuit Schematic Included
Printed Circuit Board (PCB) Features
• 100mm x 150mm
• Tinned and Solder Masked

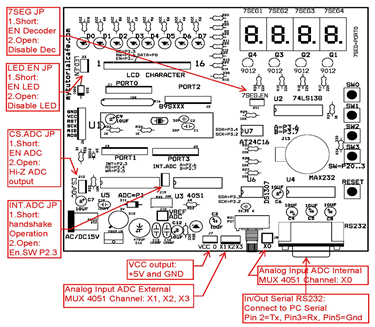

• Component Overlay Diagram (on top)
• Double sided circuit board
To use the Simple Microcontroller Trainer you will require:
A PC with a Pentium CPU or greater with a minimum or 64MB RAM
with a CDROM drive and Parallel Port, running Windows 98®
or above.
M IDE-51® or Similar Editor / assembler / Compiler - Free
Provided.
ATMEL ISP Software - Free Provided by ATMEL Corp.
5v DC regulated power supply 500mA or greater with 2 pin header
female connector.
Buy now for only USD $45
