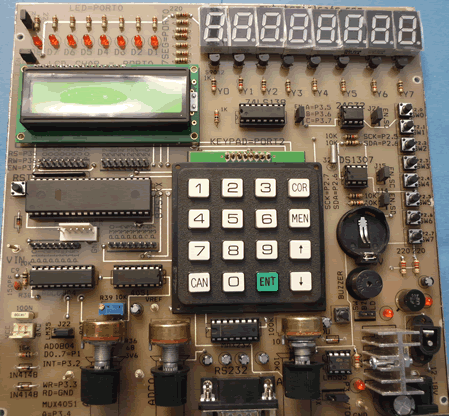

Standar Mikrokontroller AT89s51 Trainer
(click here for download manual)
Learn 8051 Programming and Code Development the quick and easy way,
with this easy to use Educational/Training Board. The 8051 Educational
board incorporates an AT89S51 Atmel Microcontroller with 4k of In-System
Flash Memory, which can be programmed and re-programmed easily with
simple to use standard download ATMEL ISP software. Eight LED's, 8
pushbuttons, 8 Seven Segmen, LCD Character 2 x 16, ADC, DAC and Serial
Communiation RS232 are provided, allowing code to be developed and
tested immediately.
All port I/O's are available at easy to connect male headers, standard
plugs can be used. Program Run switch is also included together. A
reset pushbutton is pre-wired to the IC.
Please note: Power supply is not included, a regulated
5 volt dc supply is required.
Features
• Includes AT89S51 with 4kb internal Flash Program Memory
• crystal(12.MHz) pre-wired
• Programming ISP via USB Port
• All I/O pins connected to headers for easy external connections.
• AT89S51 can be programmed on-board, Programming Cable Provided
• 8 Pushbuttons
• 8 LED
• RS232 Connection
• ADC0804 for single chanel with 0 - 5 volt range input.(Vref
can be adjusted)
• 8 x 7 segmen display common anoda
• DAC0808 (Iref can be adjusted)
• LCD Character 2x16
• Keypad 4 x 4
• Download Software and Sample Code Included
• Circuit Schematic Included
• Program download and run is easily executed in-system by computer
parallel port, no programmer is required.
Printed Circuit Board (PCB) Features
• 200mm x 200mm
• Tinned and Solder Masked
• Component Overlay Diagram (on top)
• Double sided circuit board
To use the Simple Microcontroller Trainer you will require:
• A PC with a Pentium CPU or greater with a minimum
or 64MB RAM with a CDROM drive and Parallel Port, running Windows 98®
or above.
• M IDE-51® or Similar Editor / assembler / Compiler - Free
Provided.
• ATMEL ISP Software - Free Provided by ATMEL Corp.
• 5v, +12v and -12v DC regulated power supply 500mA or greater
with 2 pin header female connector.
Buy now for only USD $85
NOTE:
Total Price = Product price + delivery fee
(according to your location, contact us via email)
Please, sent me an email for your detail : Kits, Qty, Name, Address,
Post Code, Country,and Email
Payment: Bank Transfer
Bank: BNI Cabang Urip Sumoharjo, Surabaya,Jawa Timur,
Indonesia
Account No: 0049517502,
Name: Triwiyanto
Contact:
Email: [email protected]
Phone: 62-081-55126883
Home: 0881-5546354
Address: Ngagel Rejo Utara V/24, Surabaya-Jawa Timur-Indonesia
Campus : Microcontroller Laboratory , Jurusan Teknik
Elektromedik Politeknik Kesehatan Surabaya, Jl. Pucang Jajar Timur No.10,
Surabaya, Jawa Timur, Indonesia.
|
